概述
Φ32mm 行星減速箱（SMD系列）
型號：ZWSMD032032
直徑：32
長度：32~77
最大傳輸功率（W） ：242
最大連續轉矩（Nm）：12.6
最高連續輸入轉速：6000
環境溫度（℃) ：-40~+100
輸出端軸承：滾珠軸承
* 該齒輪箱可根據客戶要求定制，并與對應電機整體出售。
減速箱技術數據
| 級數 | 1 | 2 | 3 | 4 |
| 減速比 | 3.9,5.3 | 16,21,26,28,35 | 62,83, 103,111, 138,150, 172,186, 231 | 243,326,406, 439,546,590, 679,734,794, 913,987,1135, 1227,1526 |
| 最大傳連續輸功率（W） | 242 | 160 | 70 | 25 |
| 最大瞬時傳輸功率（W） | 300 | 160 | 85 | 30 |
| 最大連續轉矩(Nm) | 2.2 | 4.8 | 10.4 | 12.6 |
| 最大瞬時轉矩(Nm) | 2.7 | 6 | 13 | 16 |
| 最高連續輸入轉速 | 6000 | 6000 | 6000 | 6000 |
| 最高瞬時輸入轉速 | 7500 | 7500 | 7500 | 7500 |
| 最大效率(%) | 96 | 93 | 90 | 87 |
| 空載平均空回(°) | 0.4 | 0.7 | 0.8 | 0.8 |
| 最大軸向動態載荷（N） | 110 | 110 | 110 | 110 |
| 最大徑向載荷（離法蘭4mm處）(N) | 150 | 200 | 250 | 250 |
| 齒輪箱長度L1(mm) | 32 | 47 | 62 | 77 |
| 重量（G） | 167 | 231 | 287 | 350 |
推薦型號
| 型號 | 額定電壓 (V) |
空載數據 | 負載數據 | 總長(mm) | 齒輪箱額定容許力矩(NM) | 齒輪箱瞬間容許力矩(NM) | 減速比 | 減速箱長 L1(mm) | |||
| 空載轉速 | 空載 電流（mA max） |
負載 轉速 |
負載 電流（A Max） |
轉矩（N.m） | |||||||
| ZWSMD032032-3.9-X | 24.0 | 1286 | 150 | 1051 | 1.0 | 0.097 | 74.0 | 2.2 | 2.7 | 3.9 | 32.0 |
| ZWSMD032032-5.3-X | 24.0 | 1068 | 150 | 774 | 1.0 | 0.132 | 5.3 | ||||
| ZWSMD032032-16-X | 24.0 | 363 | 150 | 263 | 1.0 | 0.377 | 87.5 | 4.8 | 6.0 | 16 | 45.5 |
| ZWSMD032032-21-X | 24.0 | 270 | 150 | 196 | 1.0 | 0.507 | 21 | ||||
| ZWSMD032032-26-X | 24.0 | 217 | 150 | 157 | 1.0 | 0.630 | 26 | ||||
| ZWSMD032032-28-X | 24.0 | 201 | 150 | 146 | 1.0 | 0.681 | 28 | ||||
| ZWSMD032032-35-X | 24.0 | 162 | 150 | 117 | 1.0 | 0.847 | 35 | ||||
| ZWSMD032032-62-X | 24.0 | 92 | 150 | 67 | 1.0 | 1.439 | 103.5 | 10.4 | 13.0 | 62 | 61.5 |
| ZWSMD032032-83-X | 24.0 | 68 | 150 | 50 | 1.0 | 1.935 | 83 | ||||
| ZWSMD032032-103-X | 24.0 | 55 | 150 | 40 | 1.0 | 2.406 | 103 | ||||
| ZWSMD032032-111-X | 24.0 | 51 | 150 | 37 | 1.0 | 2.602 | 111 | ||||
| ZWSMD032032-138-X | 24.0 | 41 | 150 | 30 | 1.0 | 3.236 | 138 | ||||
| ZWSMD032032-150-X | 24.0 | 38 | 150 | 27 | 1.0 | 3.500 | 150 | ||||
| ZWSMD032032-172-X | 24.0 | 33 | 150 | 24 | 1.0 | 4.023 | 172 | ||||
| ZWSMD032032-186-X | 24.0 | 30 | 150 | 22 | 1.0 | 4.351 | 186 | ||||
| ZWSMD032032-231-X | 24.0 | 25 | 150 | 18 | 1.0 | 5.410 | 231 | ||||
| ZWSMD032032-243-X | 24.0 | 23 | 150 | 17 | 1.0 | 5.490 | 117.5 | 12.6 | 16.0 | 243 | 75.5 |
| ZWSMD032032-326-X | 24.0 | 17 | 150 | 13 | 1.0 | 7.383 | 326 | ||||
| ZWSMD032032-406-X | 24.0 | 14 | 150 | 10 | 1.0 | 9.180 | 406 | ||||
| ZWSMD032032-439-X | 24.0 | 13 | 150 | 9 | 1.0 | 9.929 | 439 | ||||
| ZWSMD032032-546-X | 24.0 | 10 | 150 | 8 | 1.0 | 12.345 | 546 | ||||
| ZWSMD032032-590-X | 24.0 | 10 | 150 | 8 | 1.0 | 12.600 | 590 | ||||
| ZWSMD032032-679-X | 24.0 | 8 | 150 | 7 | 1.0 | 12.600 | 679 | ||||
| ZWSMD032032-734-X | 24.0 | 8 | 150 | 7 | 1.0 | 12.600 | 734 | ||||
| ZWSMD032032-794-X | 24.0 | 7 | 150 | 6 | 1.0 | 12.600 | 794 | ||||
| ZWSMD032032-913-X | 24.0 | 6 | 150 | 5 | 1.0 | 12.600 | 913 | ||||
| ZWSMD032032-987-X | 24.0 | 6 | 150 | 5 | 1.0 | 12.600 | 987 | ||||
| ZWSMD032032-1135-X | 24.0 | 5 | 150 | 4 | 1.0 | 12.600 | 1135 | ||||
| ZWSMD032032-1227-X | 24.0 | 5 | 150 | 4 | 1.0 | 12.600 | 1227 | ||||
| ZWSMD032032-1526-X | 24.0 | 4 | 150 | 3 | 1.0 | 12.600 | 1526 | ||||
*注：以上具體參數可根據客戶要求定制。

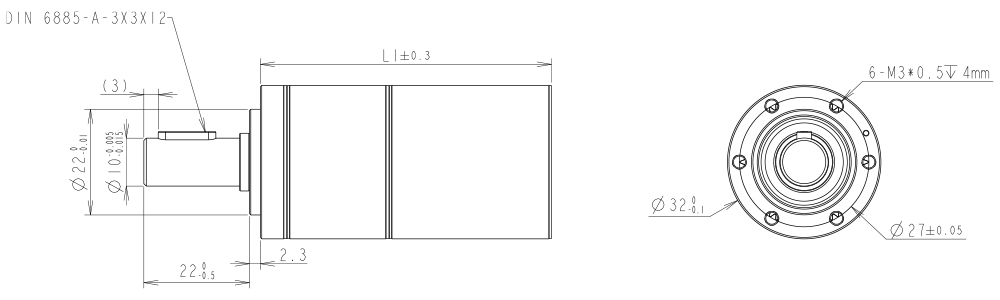

設計圖紙
查看詳情
資料下載
Φ32mm 行星減速箱（SMD系列）規格書
